Wheeled Platforms

The GRP wheeled platform family comes in a variety of customizable configurations to suit any need. The platforms are IP65 rated and engineered to handle the toughest environments. All models in this series come standard with 19-inch tires, 8 inches of ground clearance and 6 inches of independent wheel travel, allowing the platform to handle the most challenging off-road conditions. Due to the low center of gravity and extremely flexible suspension, the GRP offers smooth and stable performance with small and large payloads up to 550 lbs. The GRP is the only platform on the market offering complete platform manipulation through four-wheel steer and four-wheel drive solutions.

  • max speed: 12 mph
  • stall pull force: 600 lbs
  • length x width: 50 x 42 inches
  • UDP/IP command interface
  • optional AEODRS CM-MOB JAUS interface
  • environmental: IP65
  • independent suspension travel: 6 inches
  • ground clearance: 8 inches
  • battery capacity: 5.4 kWh
  • run time @ walking speed: 8 hrs
  • hot swappable batteries
  • exportable power: 12/24V
Contact Sales

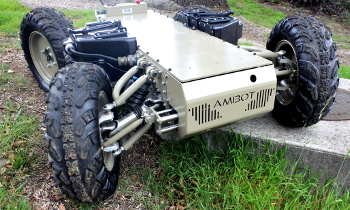

GRP 4400

Boasting all-wheel drive and four-wheel steer, the 4400 is our flagship model. Each wheel is powered and steered individually, allowing complete platform control and manipulation.

  • four-wheel independent drive
  • four-wheel steer
  • payload: 550 lbs

Steering Capabilities:

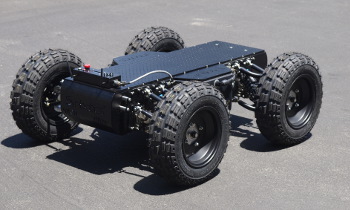

GRP 4200

The 4200 is the optimal choice when you need the ruggedness of four-wheel drive but don't require four-wheel steer.

  • four-wheel independent drive
  • two-wheel steer
  • payload: 550 lbs

Steering Capabilities:

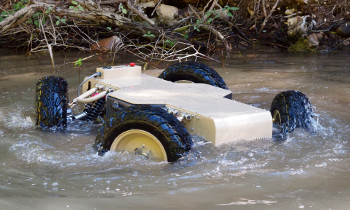

GRP 2400

The 2400 offers the agility of four-wheel steer, but with only two drive motors to reduce weight and cost.

  • two-wheel independent drive
  • four-wheel steer
  • payload: 100-250 lbs

Steering Capabilities:

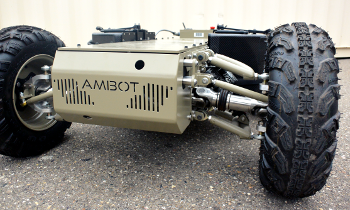

GRP 2200

The 2200 is the lightest and most affordable platform in the wheeled series. It is great for applications that need the stability and smooth driving characteristics of four-wheel independent suspension, but don't require four-wheel drive or turning in place.

  • two-wheel independent drive
  • two-wheel steer
  • payload: 100-250 lbs

Steering Capabilities:
